Various small tasks
3h
September 25, 2022
Today I did a few smaller tasks.
First, I drilled the holes for the two additional stiffeners in the tailcone area ( Service Letter 00014).
Interestingly, my paper plans were an older version without these stiffeners. However, my kit did include the parts needed to comply with the service letter.
Then I worked a bit on the cover plates and the corresponding locations for the nut plates.
I drilled and dimpled the cover plates.
Then drilled, dimpled, and countersunk the skins (the countersinks are for the NAS1097 "oops" rivets).
Finally, I worked a bit on the elevator pushrod (just because). I used the rivet fan and the painter's tape to place the holes. I put the centers of the 1st and the 9th holes against the edges of the tape (which gave me 8 holes total), then moved the rivet fan a bit and marked the holes on the tape. Then I measured .250" from the edge of the tape.
Put the tape on the tube.
Finally, drilled the holes with the #41 drill bit first, then the #31 drill bit, then the #30 reamer (for a MSP-42 pull rivet).

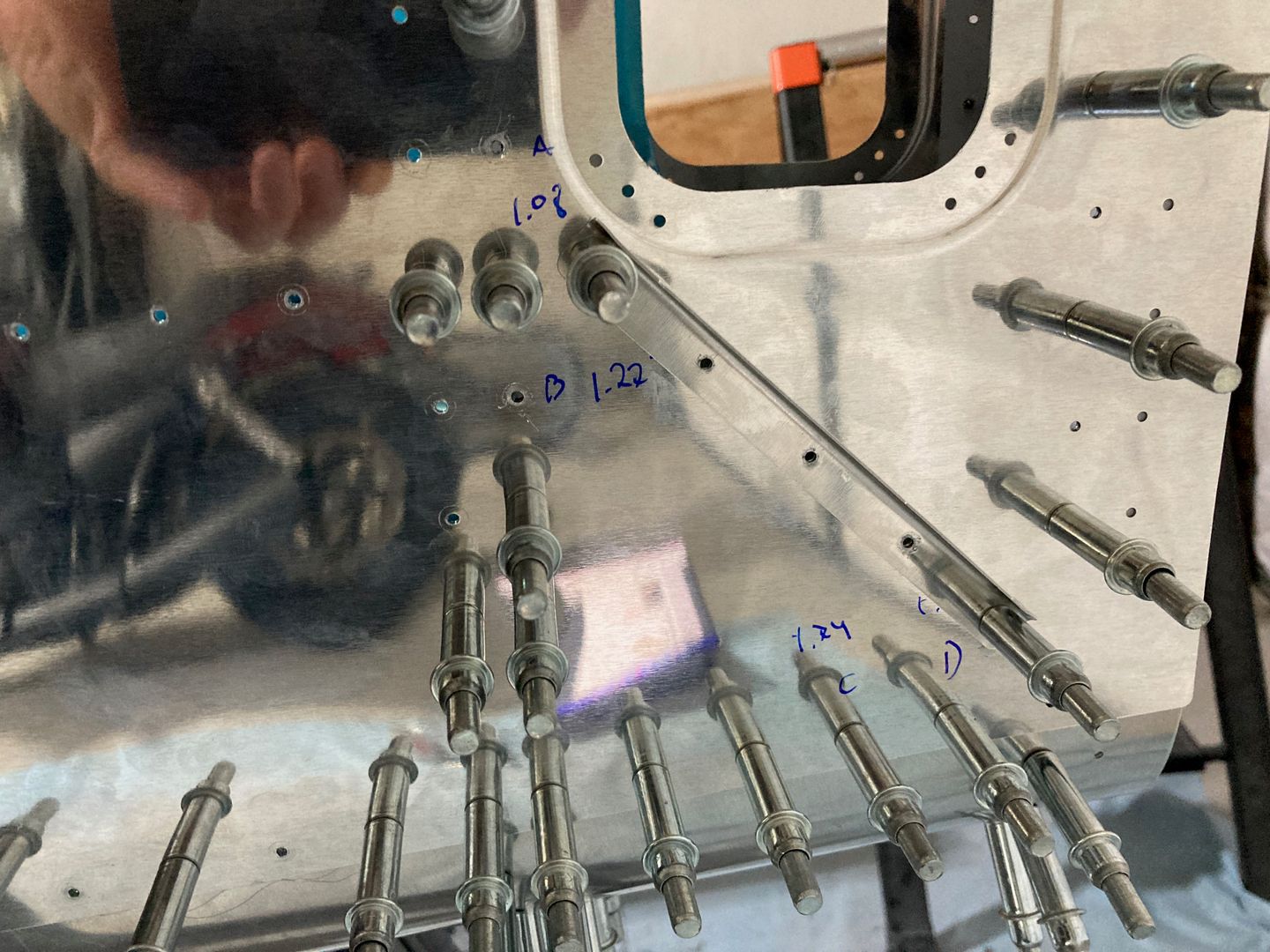

![Positioning the stiffener.](/_app/immutable/assets/0-positioning-the-stiffener.Cek_9nXO.jpeg?nf_resize=smartcrop&w=180&h=180)

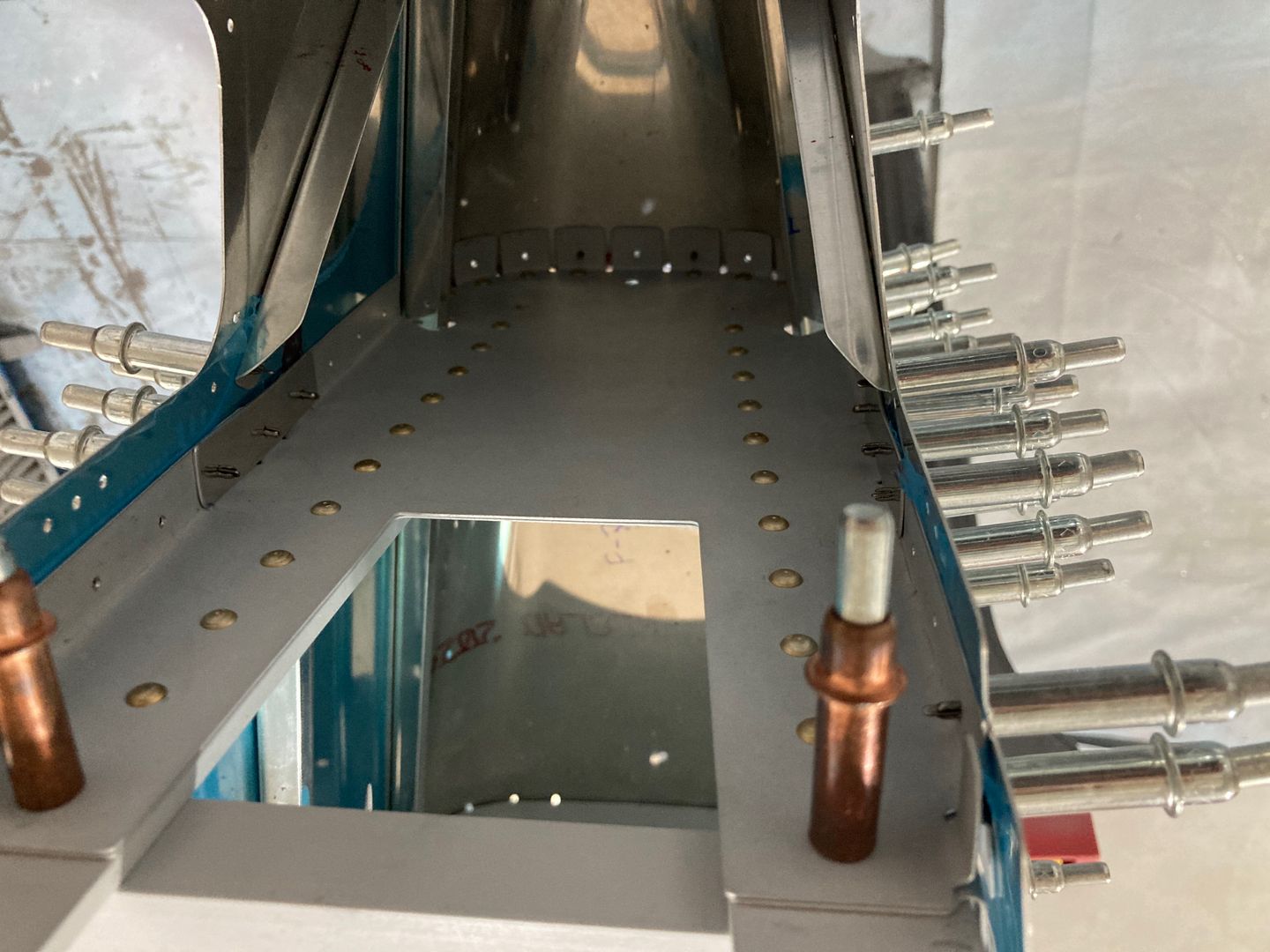

![Stiffeners in place.](/_app/immutable/assets/1-stiffeners-in-place.D6Ao4B1Y.jpeg?nf_resize=smartcrop&w=180&h=180)

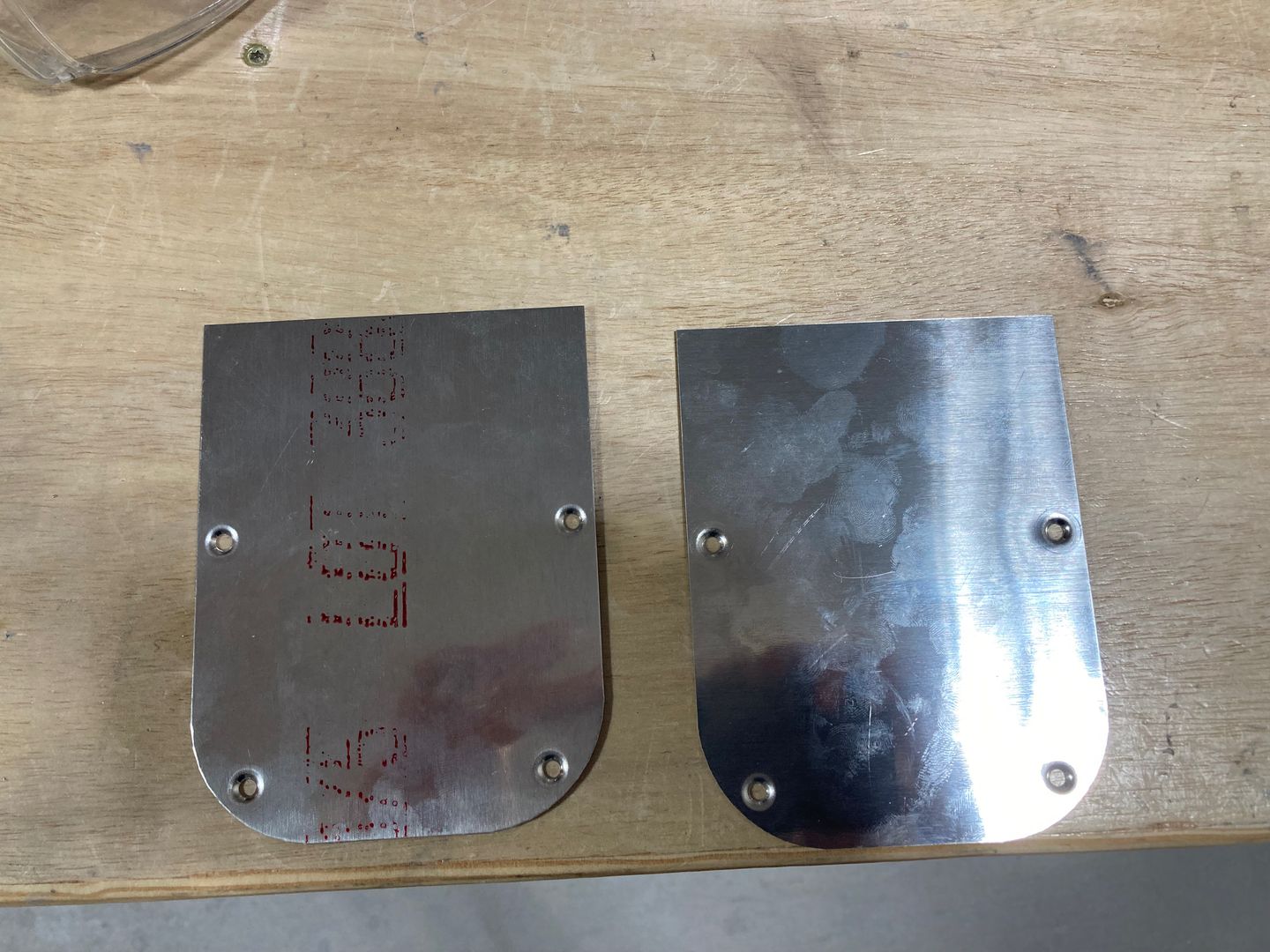

![Cover plates.](/_app/immutable/assets/2-cover-plates.BYDjoICX.jpeg?nf_resize=smartcrop&w=180&h=180)

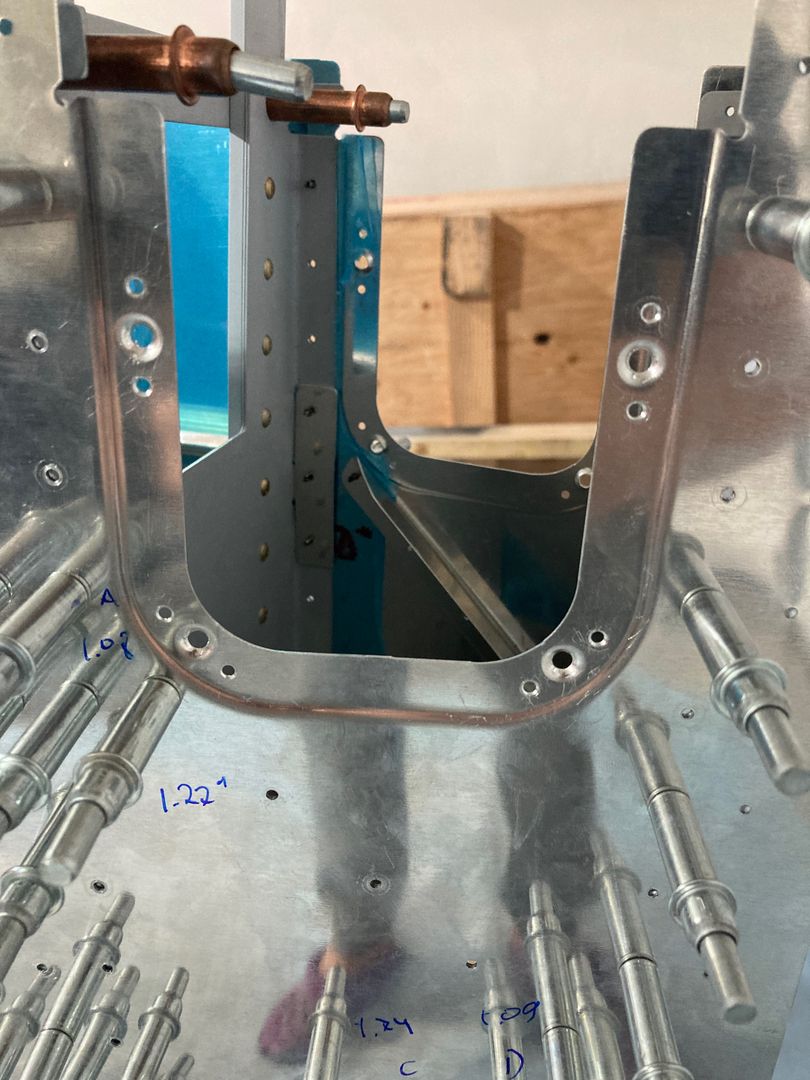

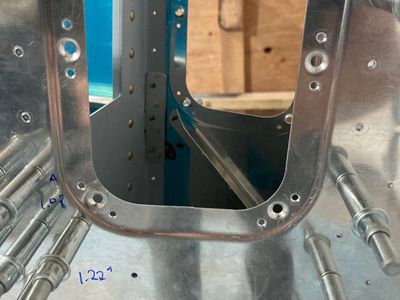

![The skins are prepared for the nutplates.](/_app/immutable/assets/3-prepared-for-the-nutplates.BaAN-h4r.jpeg?nf_resize=smartcrop&w=180&h=180)

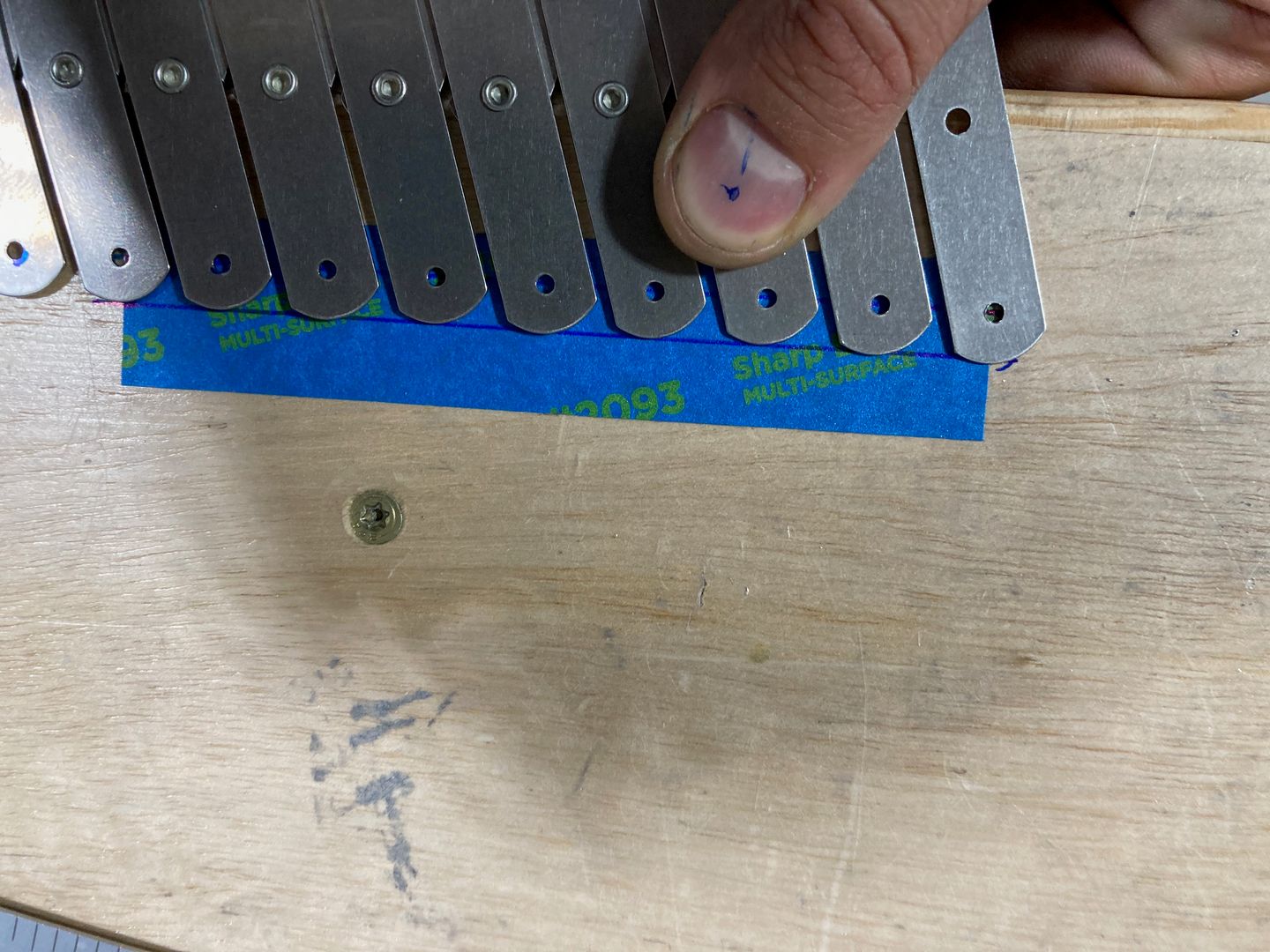

![Marking the tape for the holes.](/_app/immutable/assets/4-marking-the-tape.CxvBp0IJ.jpeg?nf_resize=smartcrop&w=180&h=180)

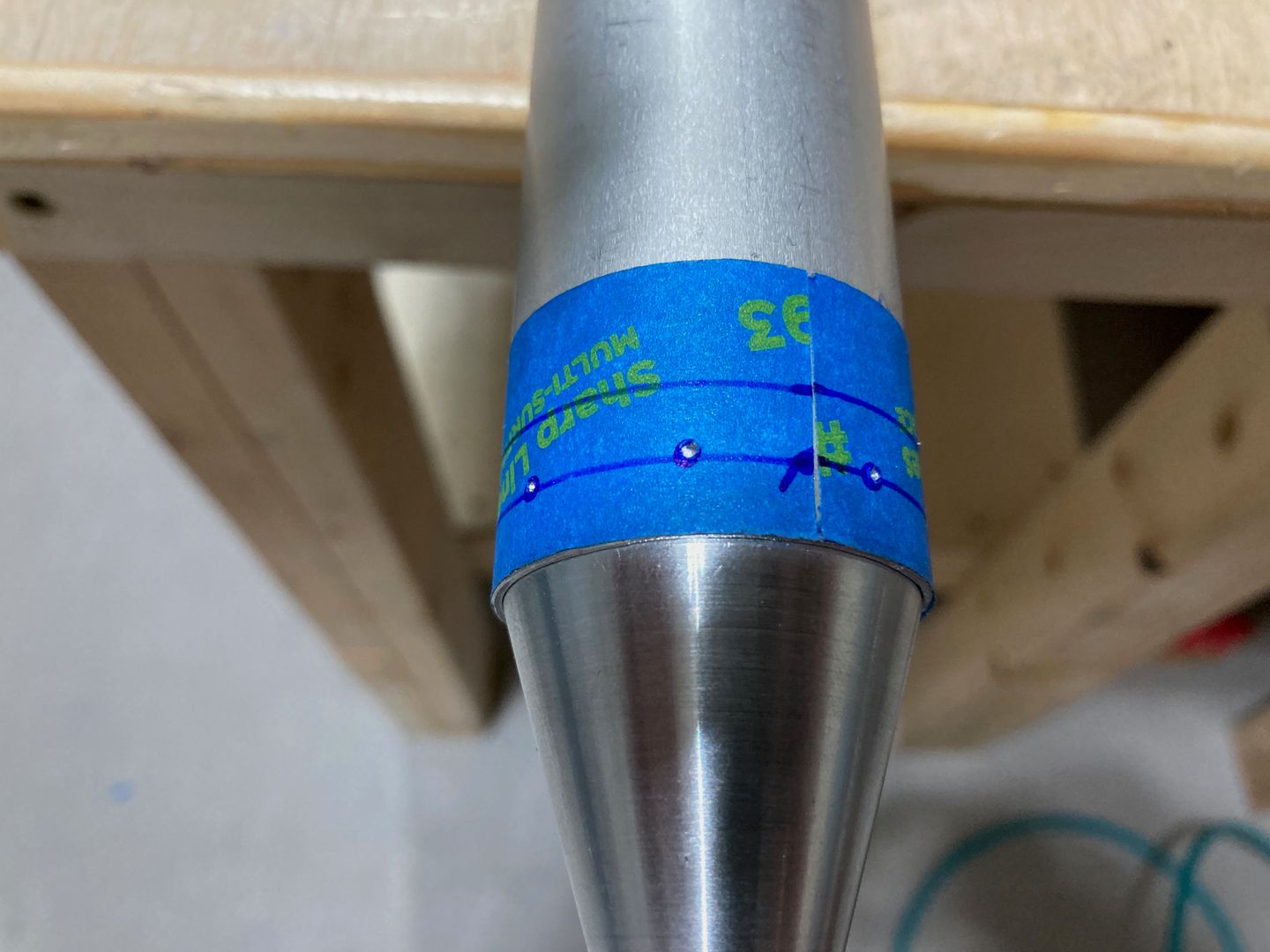

![Tape is on the tube.](/_app/immutable/assets/5-tape-on-the-tube.q3fMUcoI.jpeg?nf_resize=smartcrop&w=180&h=180)

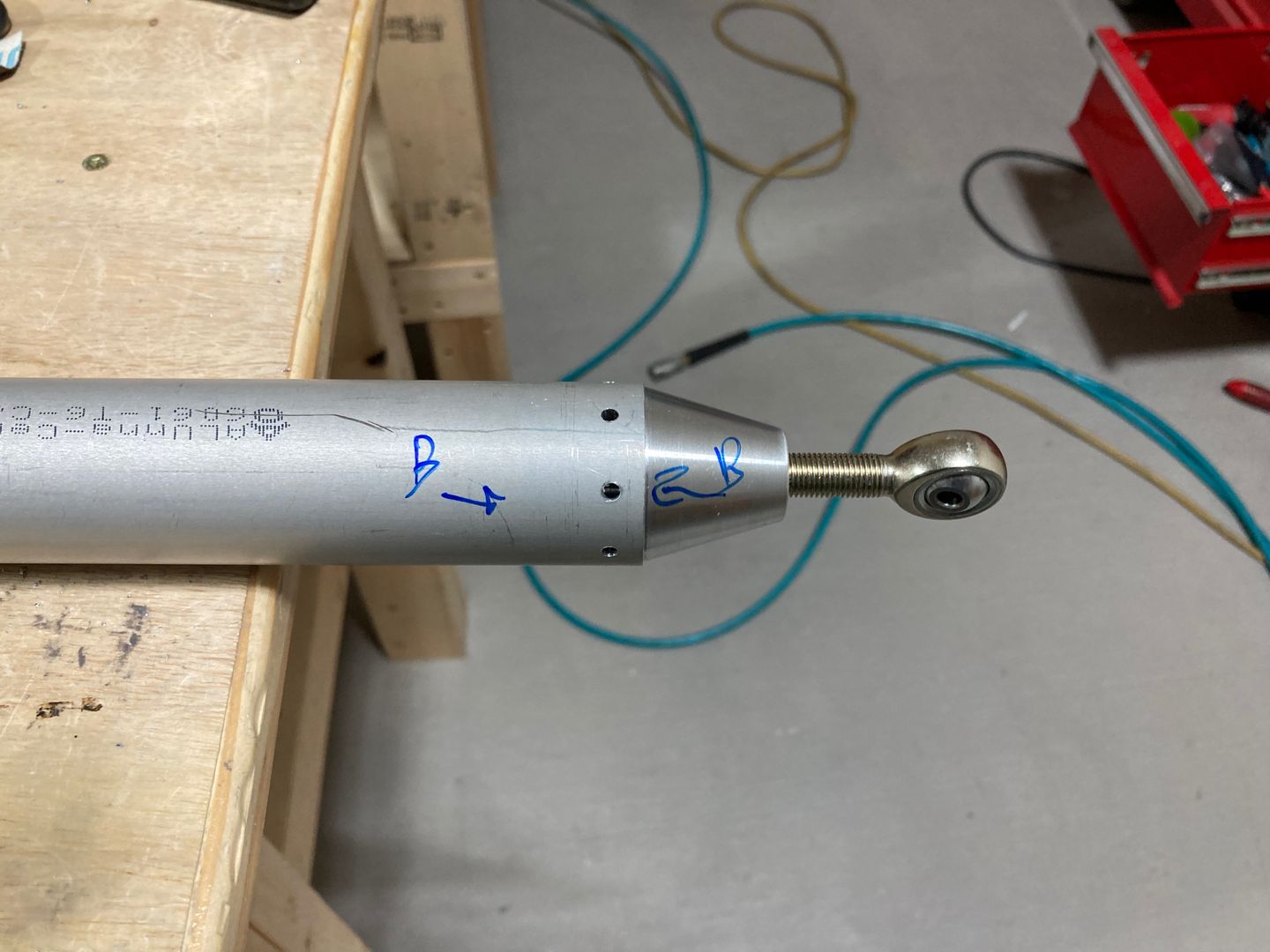

![Elevator pushrod drilled.](/_app/immutable/assets/6-elevator-pushrod-drilled.DPCnqw-5.jpeg?nf_resize=smartcrop&w=180&h=180)
