Ivan's RV-7

Finishing some small parts.Timer icon1h

May 5, 2025

A bit more work on two parts for the left fuel tank: the tank attach angle and the vent line attach clip.

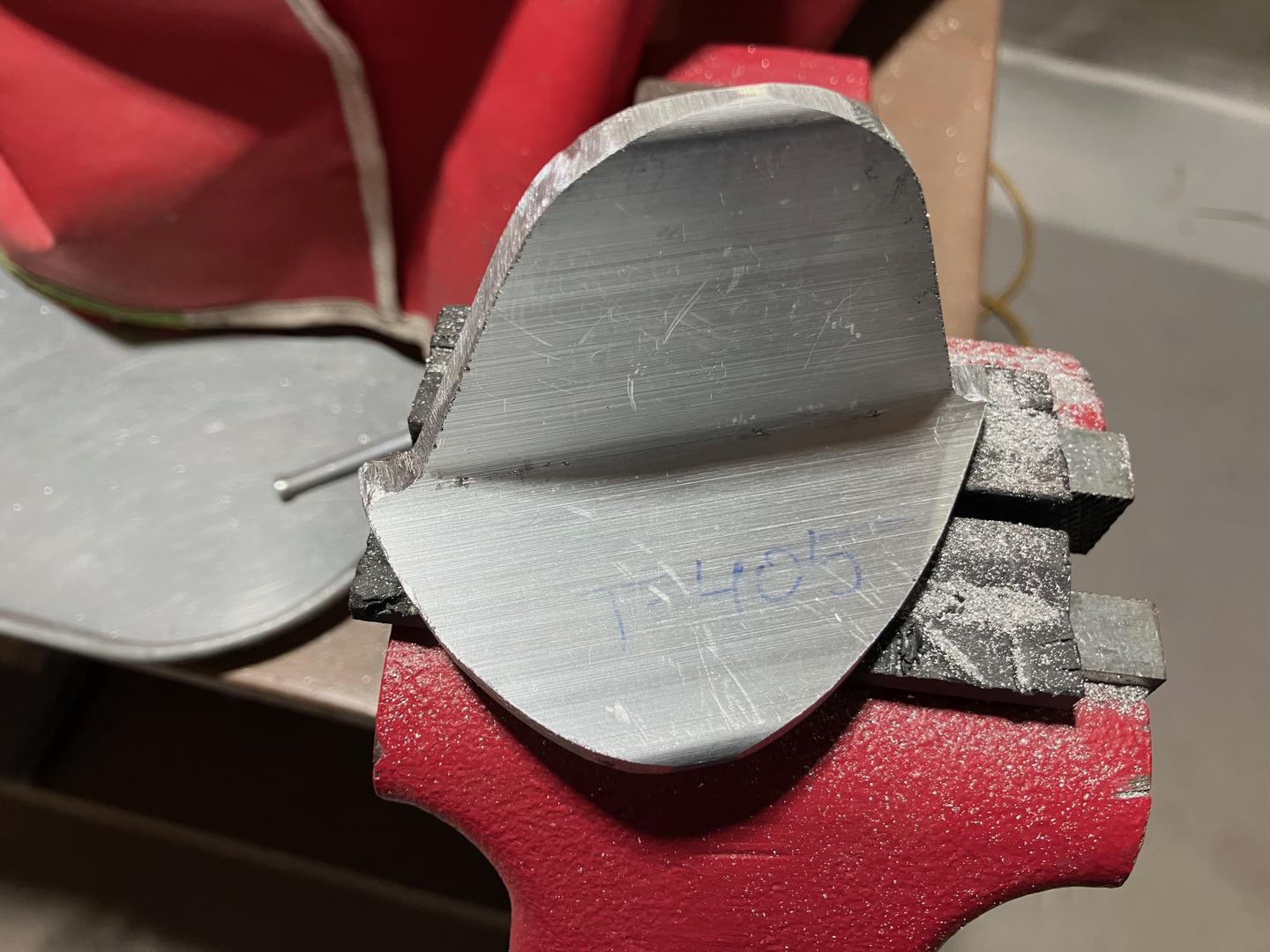

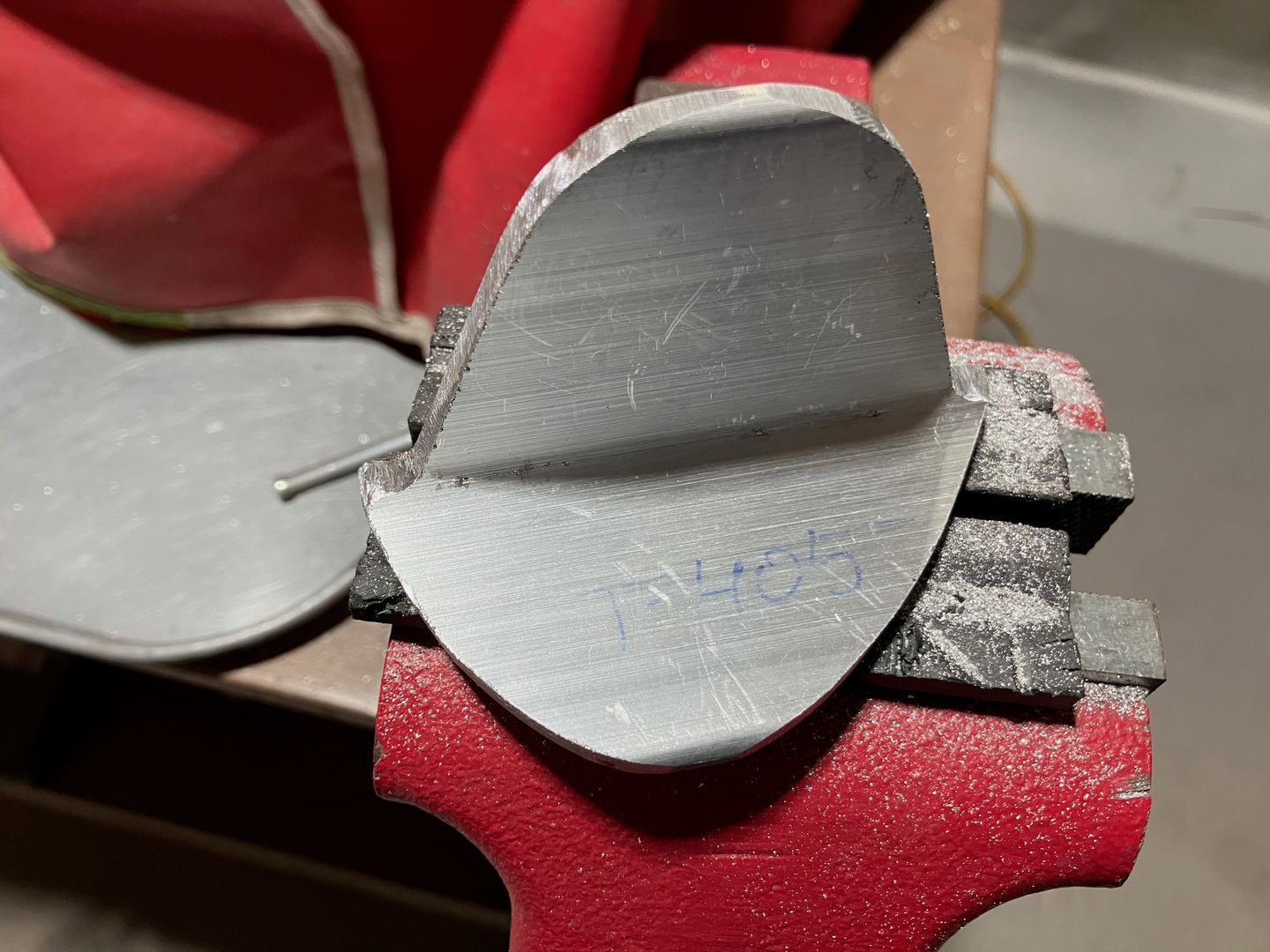

Filing the angle to fit the rib.

Filing the angle to fit.

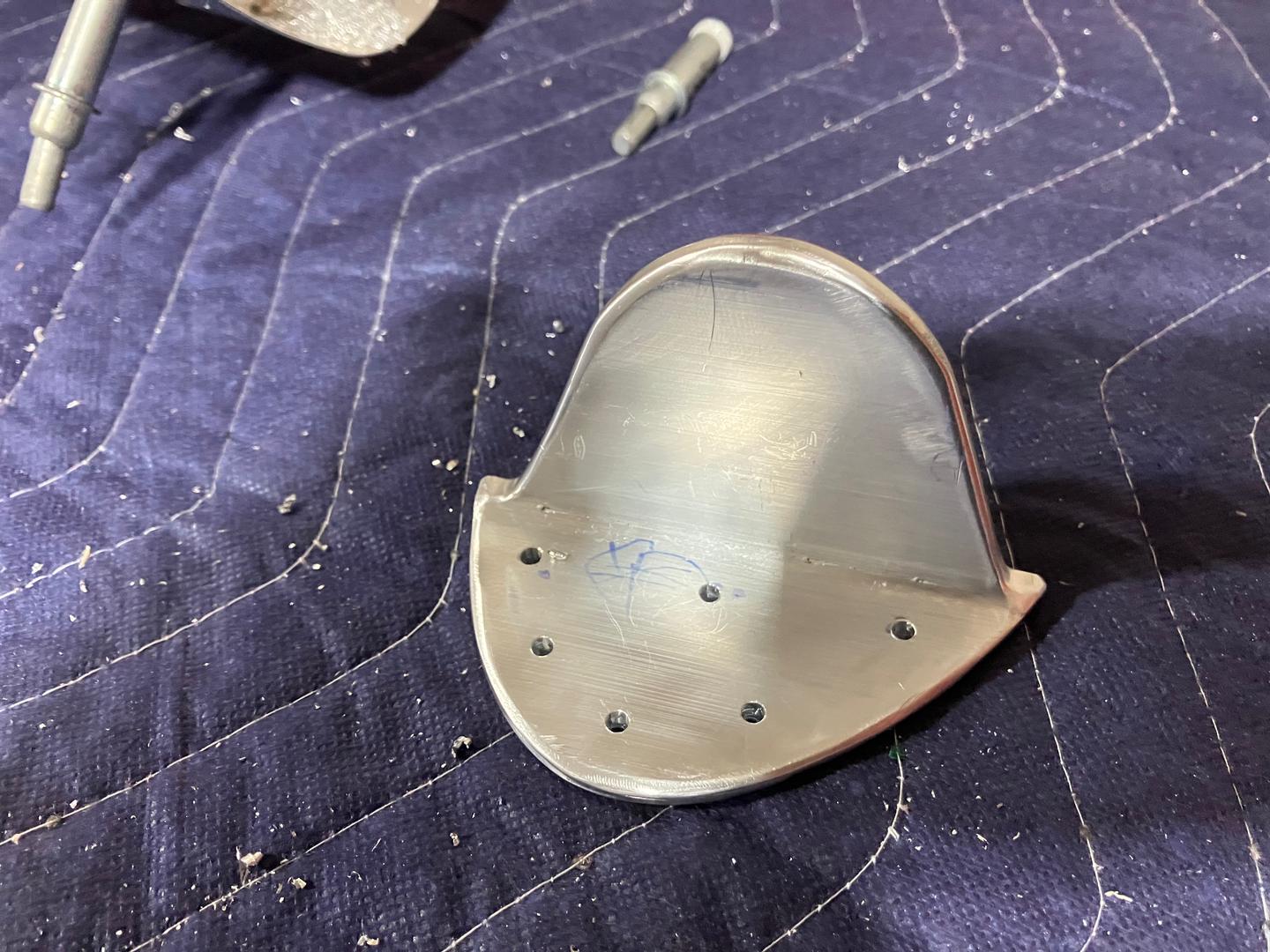

Smoothing all the edges and drilling the holes for the rivets.

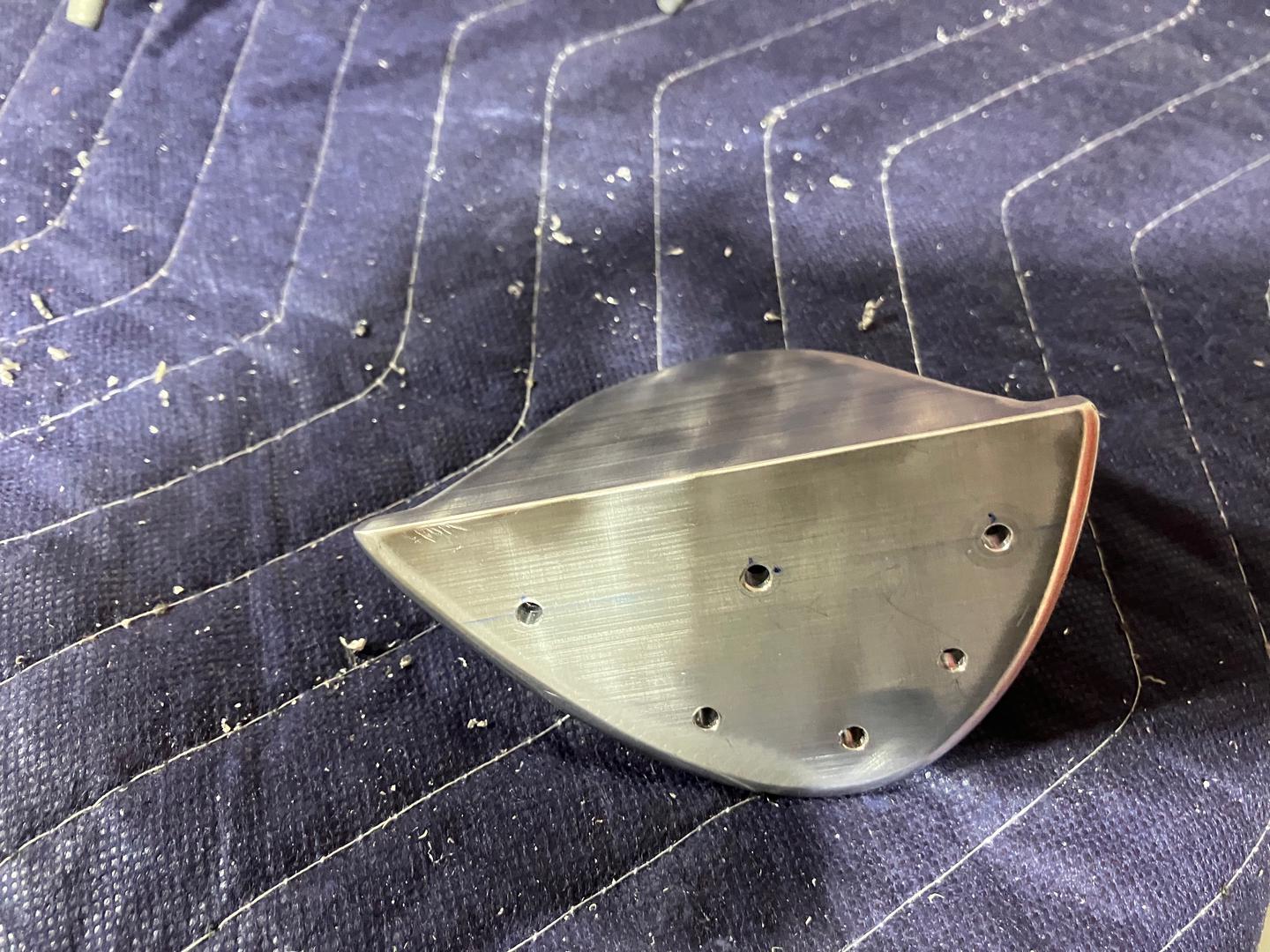

Finished angle. The opposite side of the angle.

Then, I created a small vent line attachment clip which is used to hold the end of the vent line at the filler cap.

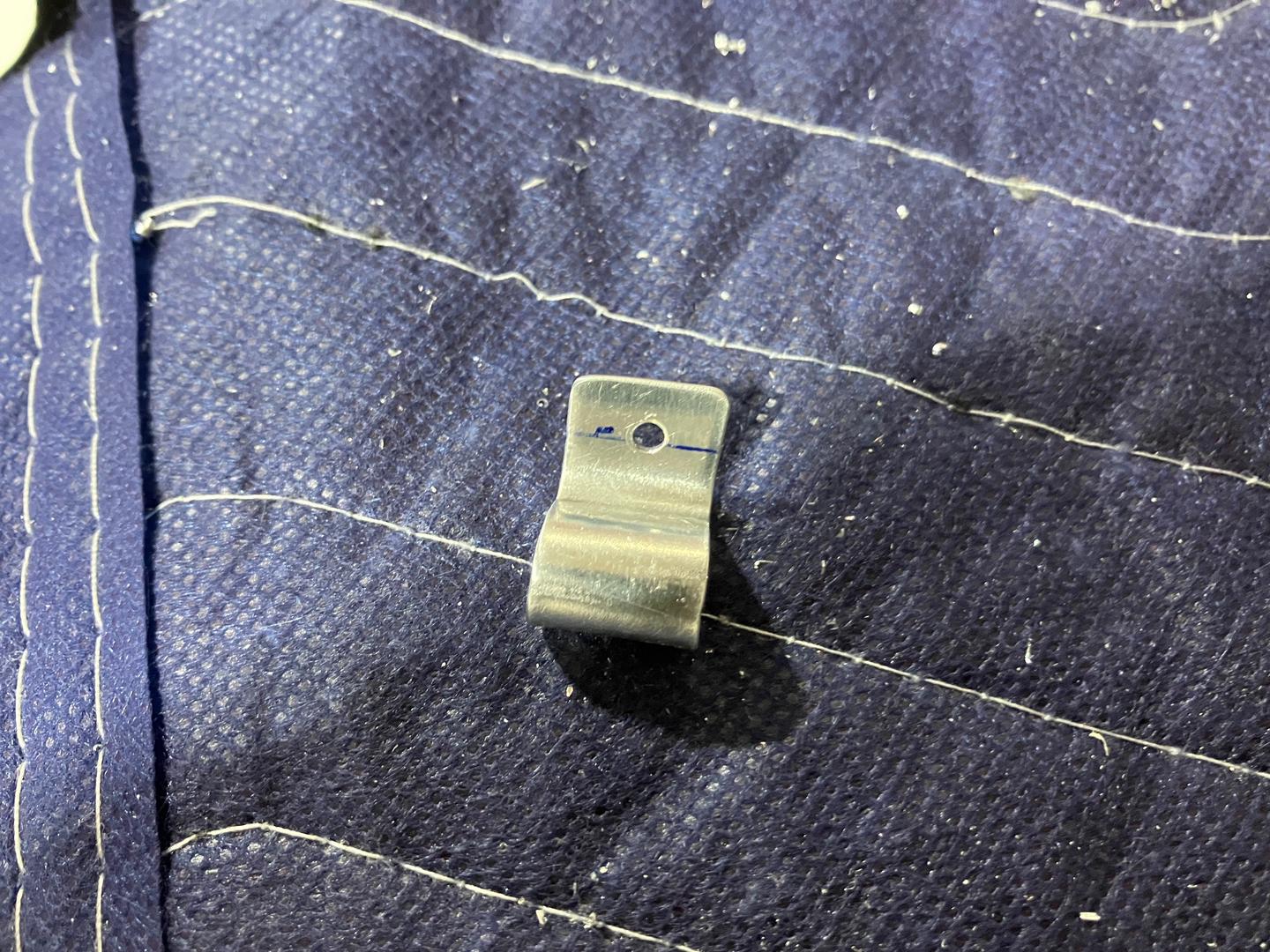

The vent line attach clip.

The next step is to scuff the skin, dimple it and start assembling the left tank!
