More switches wiring^6h

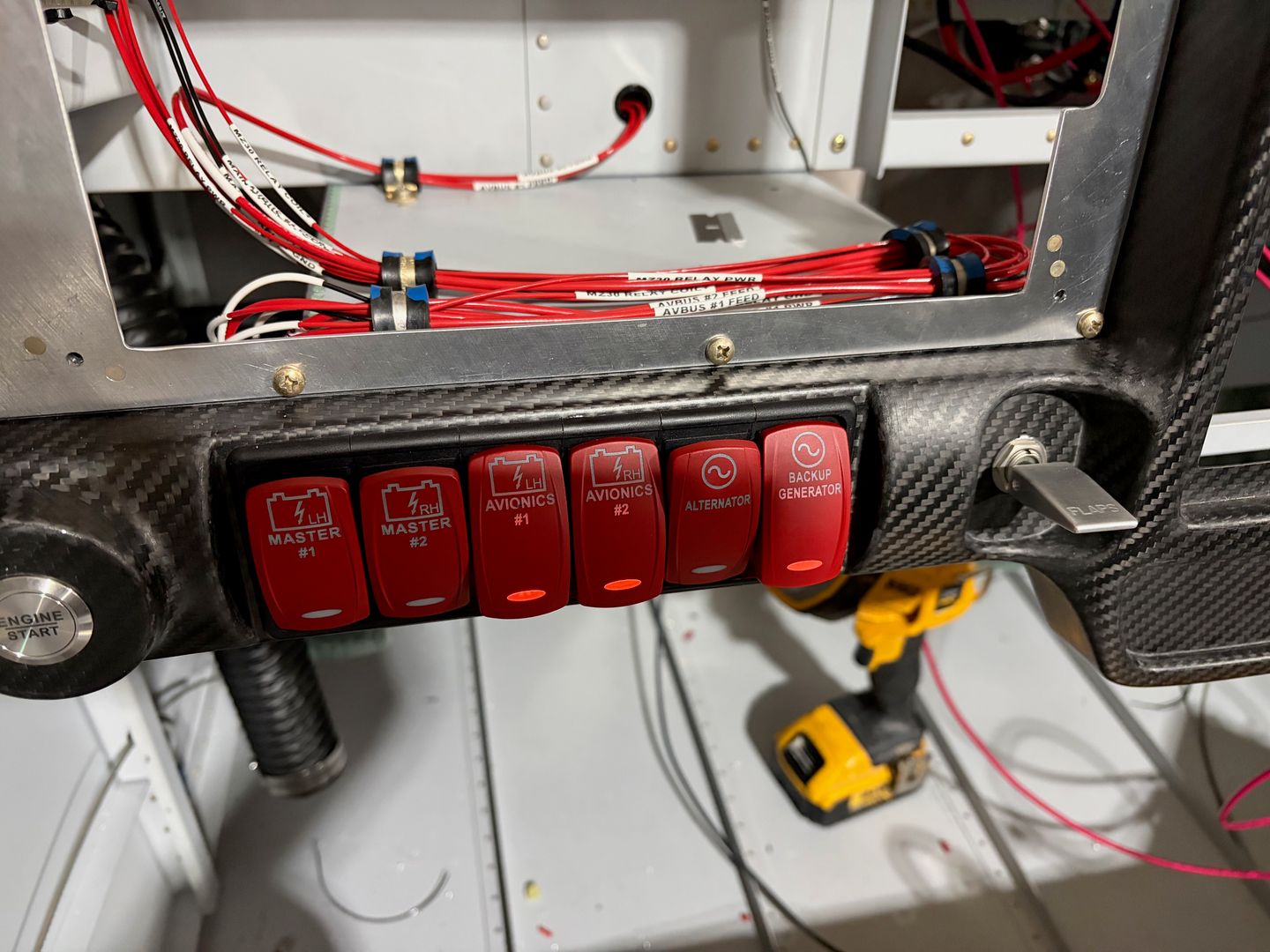

Wiring more of the panel switches.

Another session of wiring the switches.

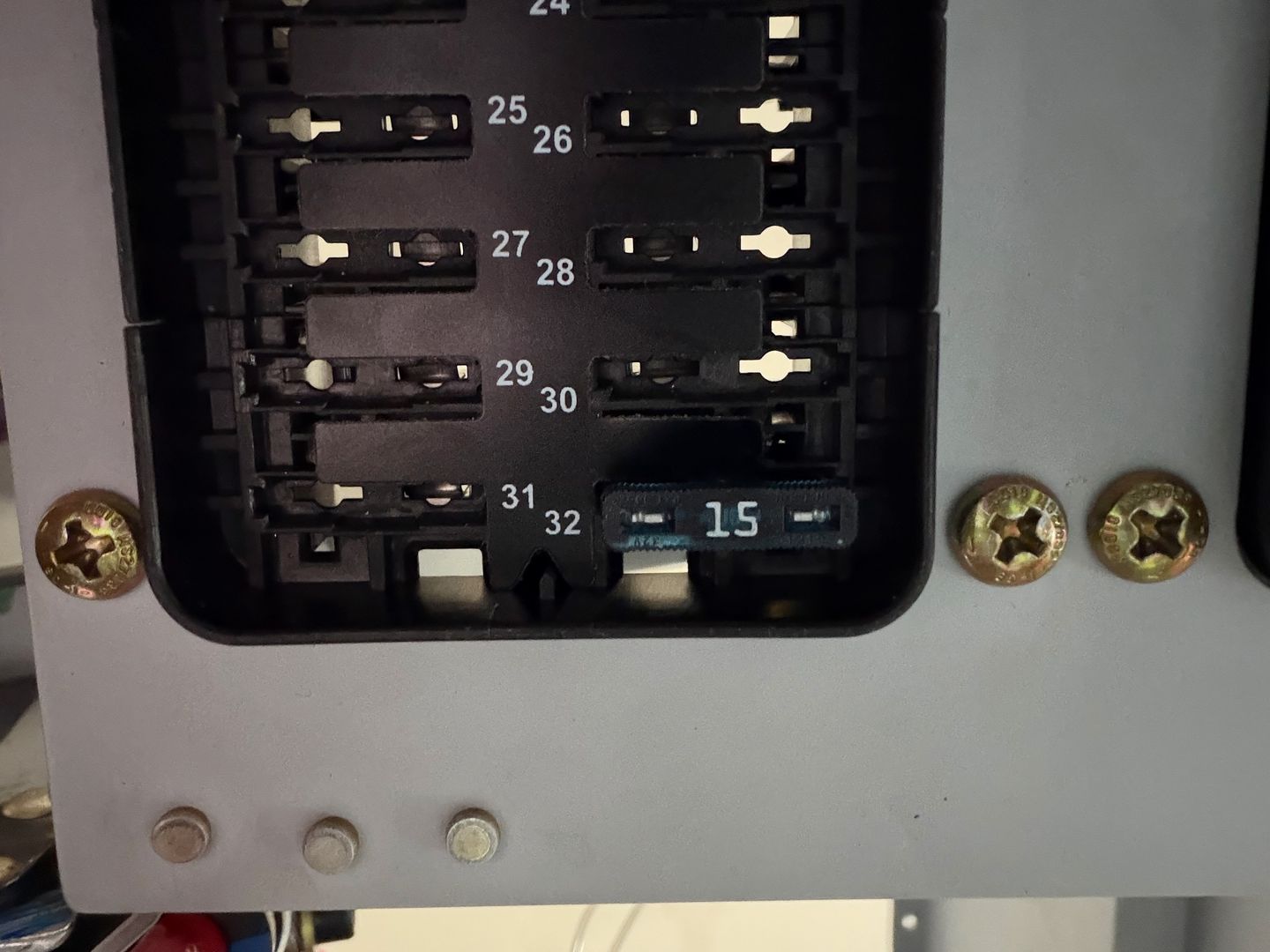

To add backlight to all the switches, I added the first fuse to the fuse block!

It's the wrong ampacity (15A), but I put it in just as a temporary fuse to see the lights working.

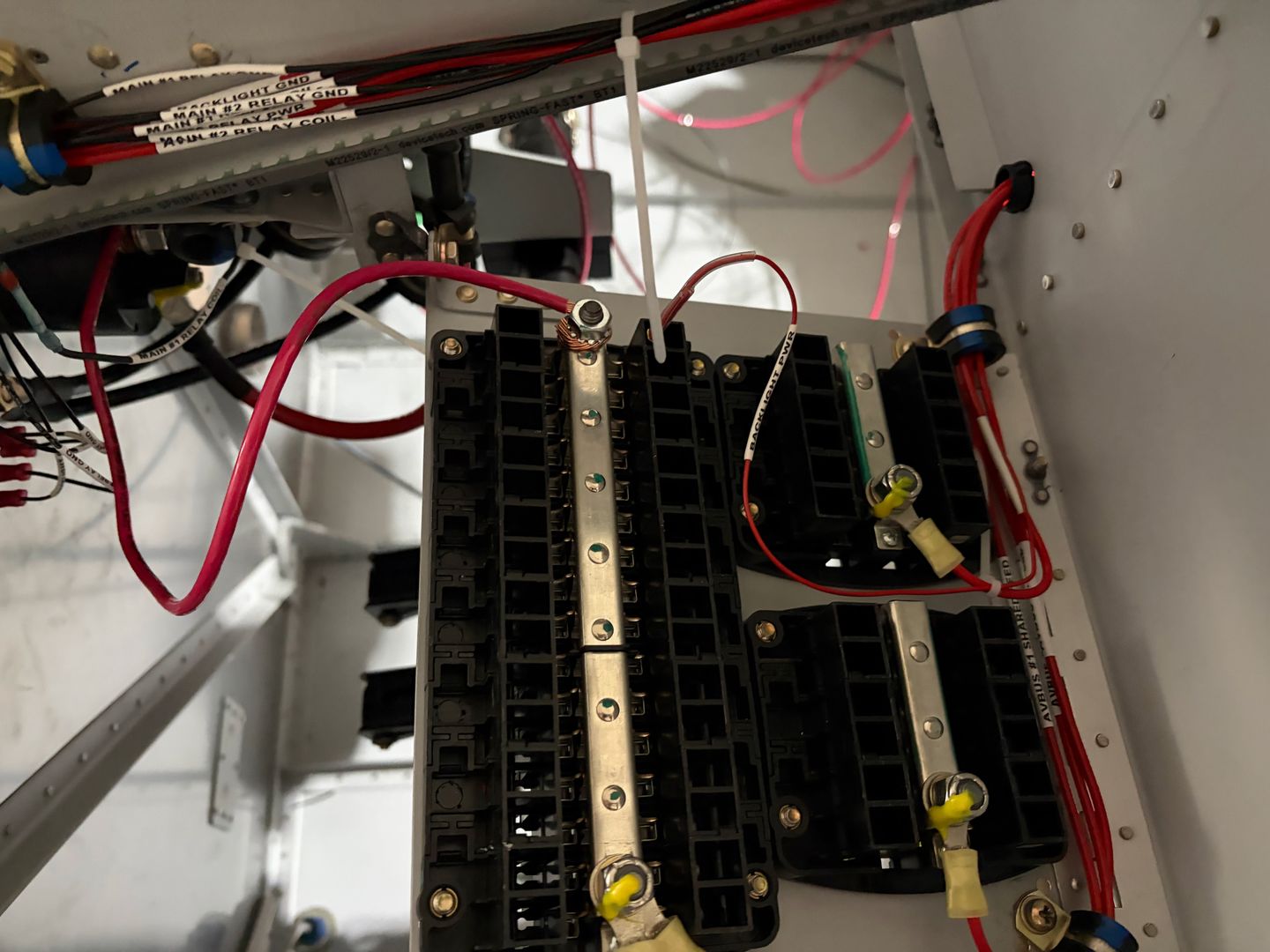

The backside of the fuse block.

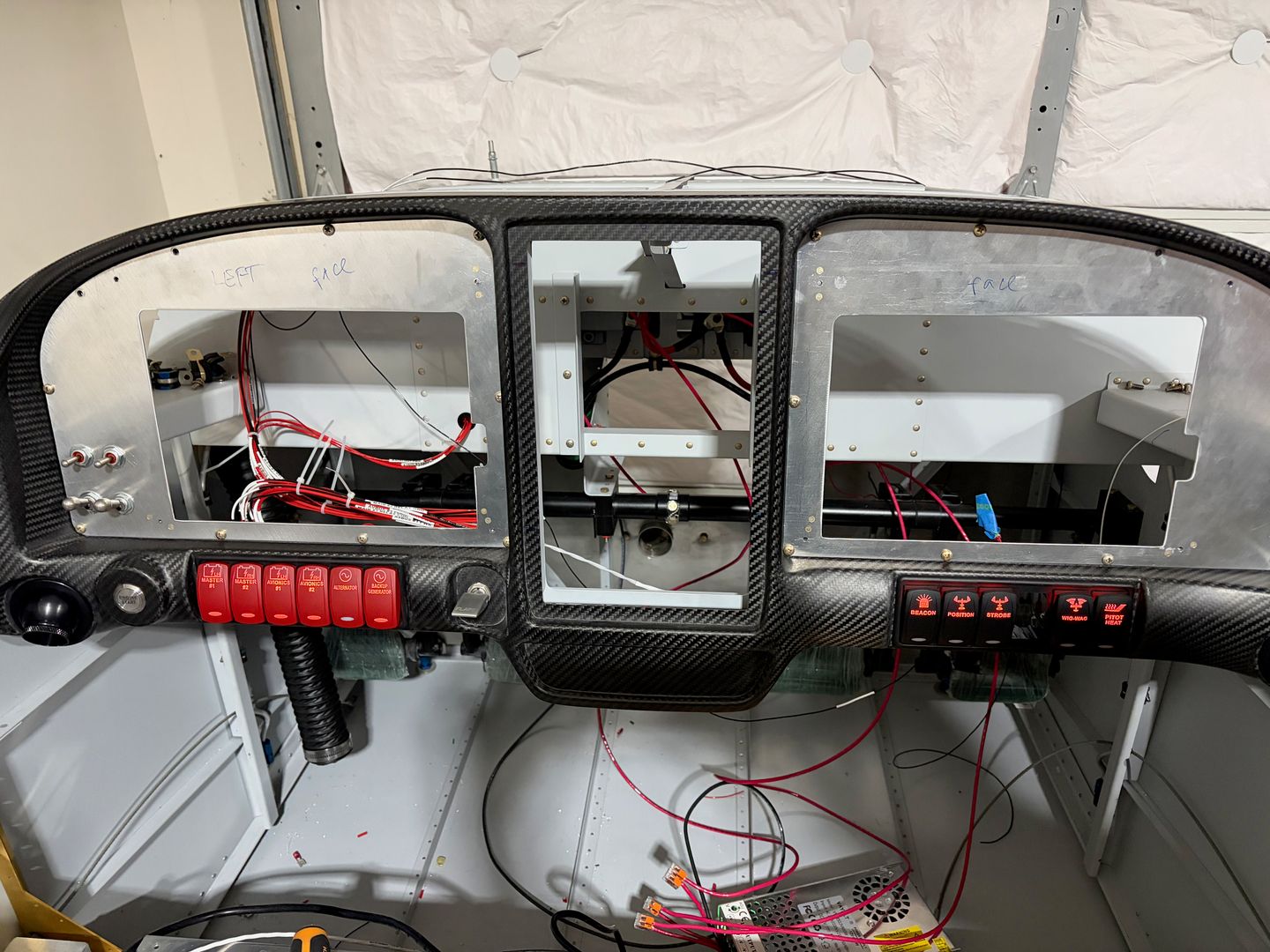

All backlight LEDs are working! There is one switch missing -- it was faulty, and I'm waiting for the replacement.

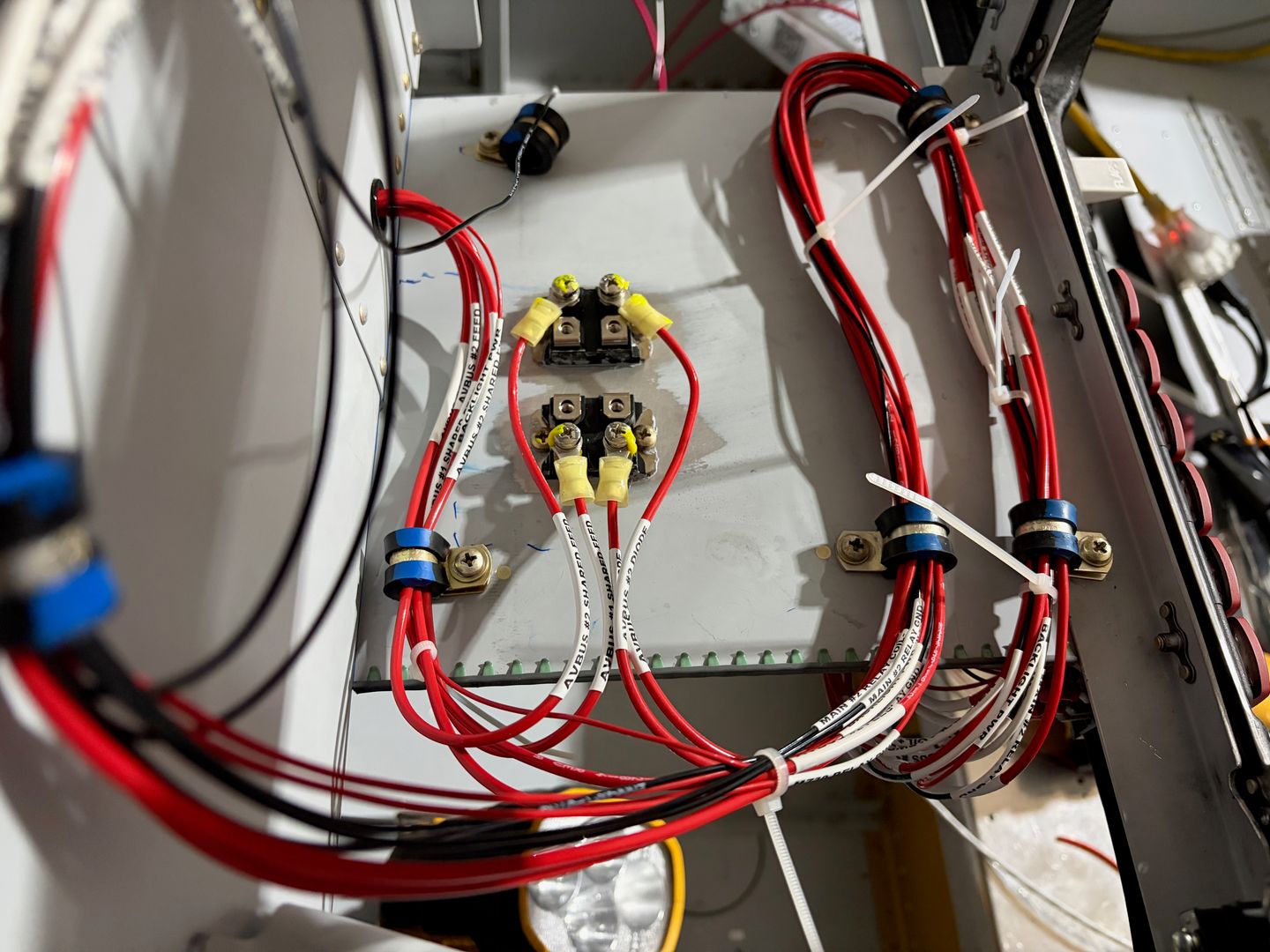

I also installed the avionics diodes.

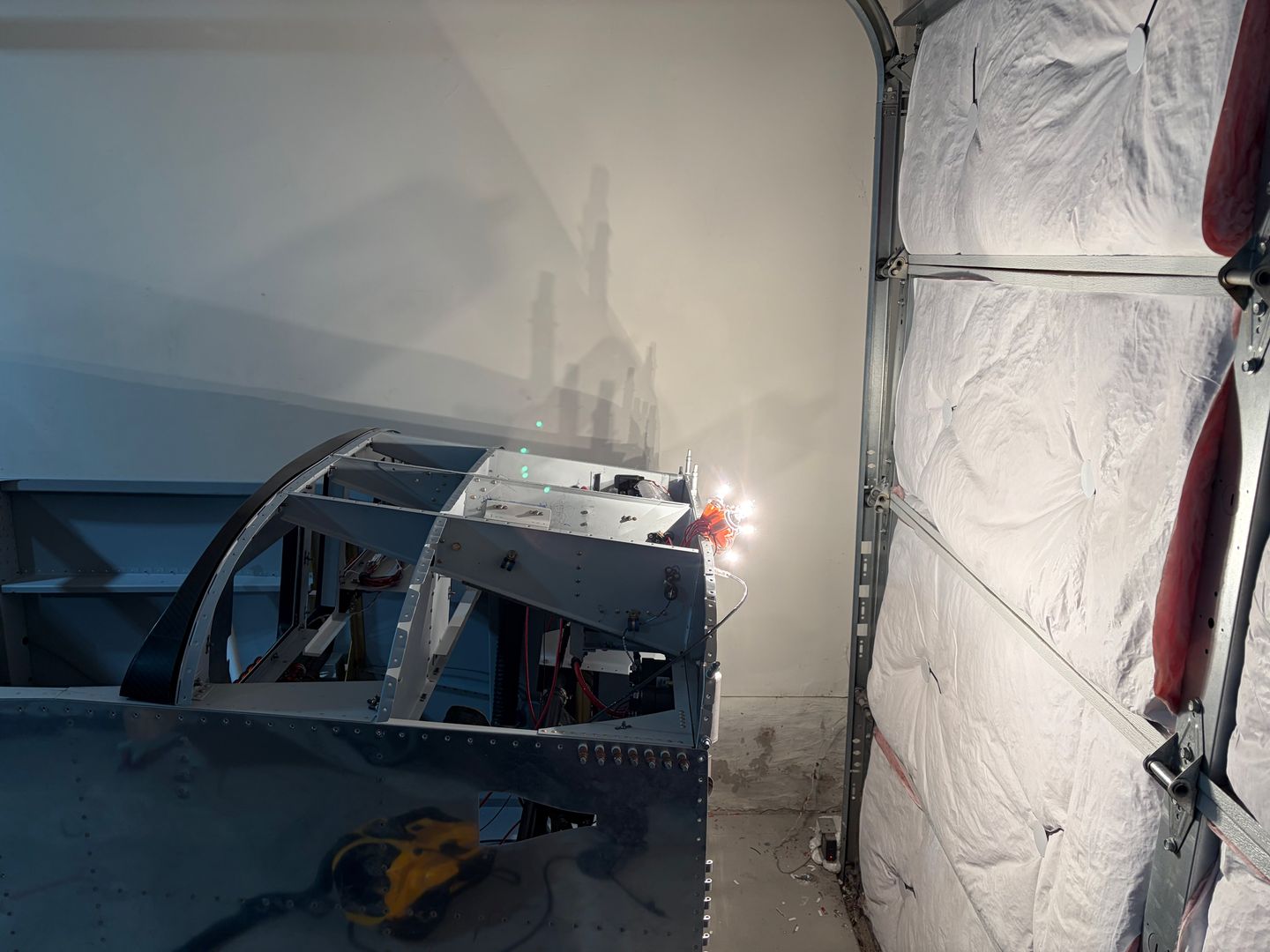

To test that the diodes can handle EFII system loads, I connected 6 H7 bulbs to the engine bus. The 6 bulbs should draw ~27A of total current (though I don't have an ammeter to verify that).
