Installing air ventsTimer icon0.5h

March 19, 2026

Tiny bit of work -- drilled the holes for the air vents.

I did a little bit of work on my panel -- drilled the holes for the air vents and installed the flap switch. Both from Aerosport Products.

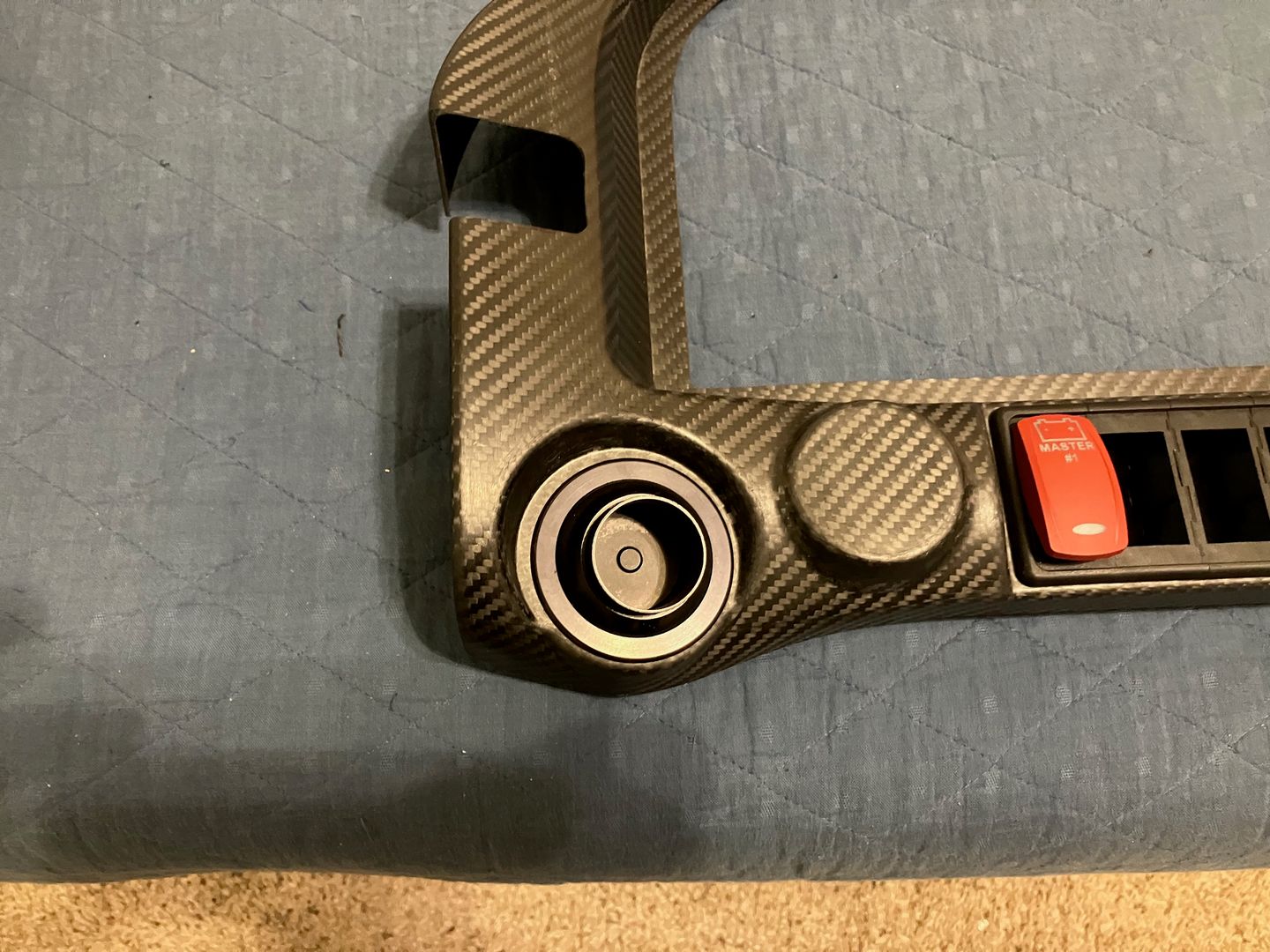

Air vent installed

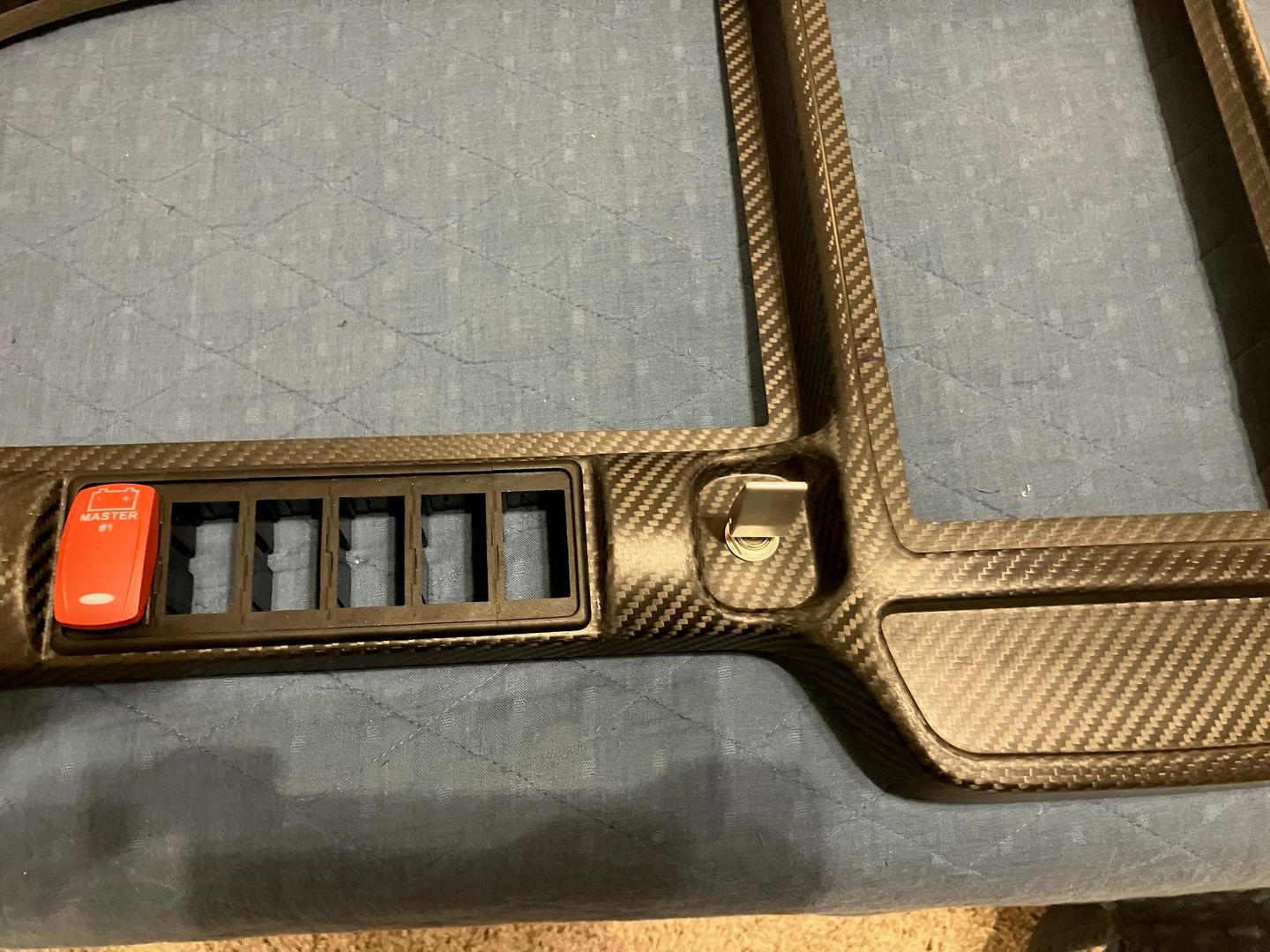

The flap switch

Also, got my Bussmann Series 15700 Rear Terminal ATC® Fuse Panels for main bus, joint avionics bus (for equipment that doesn't have two power inputs) and two independent avionics busses (for the equipment that have dual power inputs). The long panel is split 12+20, 12 for the joint avionics bus and 20 for the main bus.

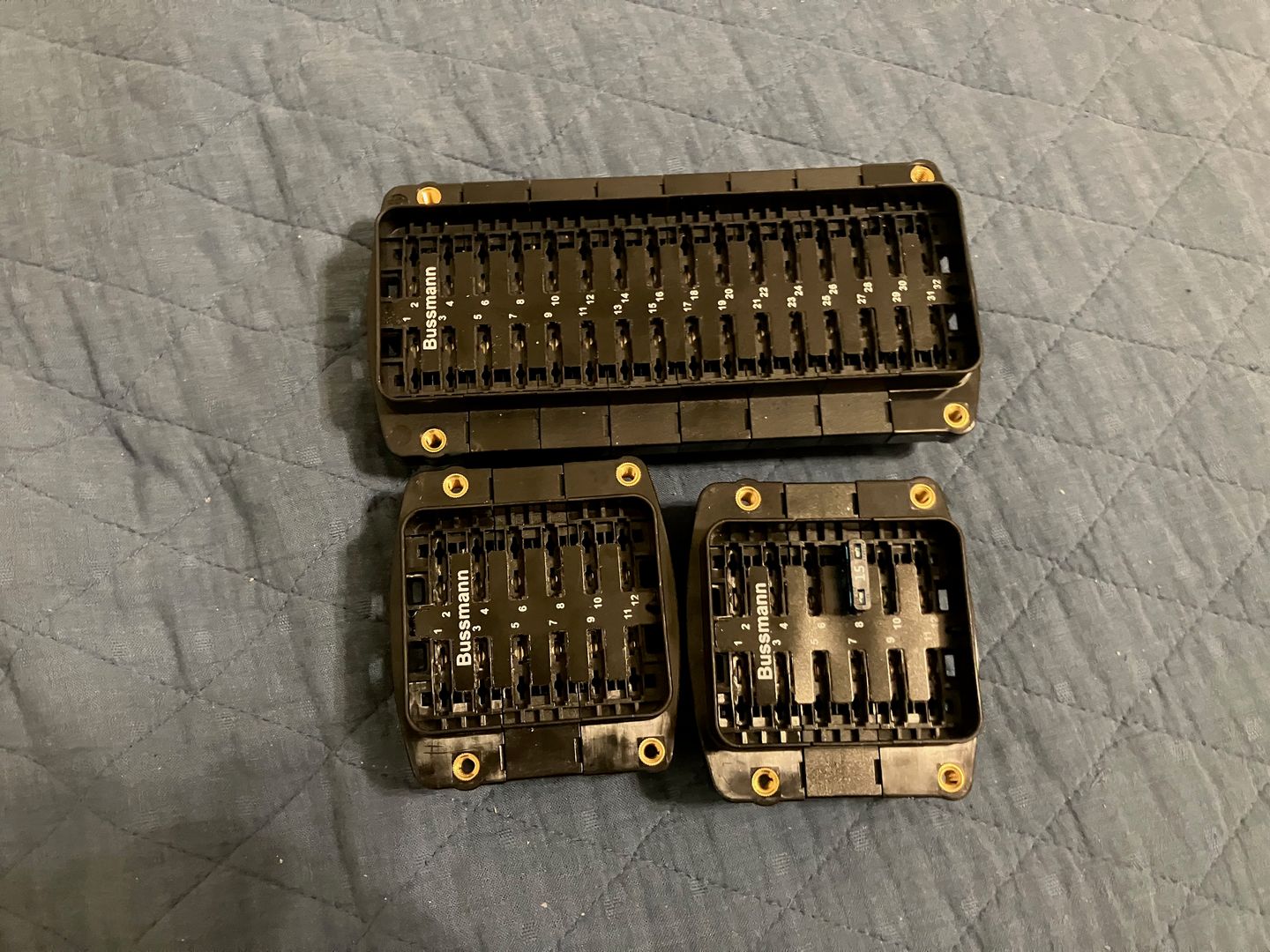

Bussmann 15700 series fuse blocks
